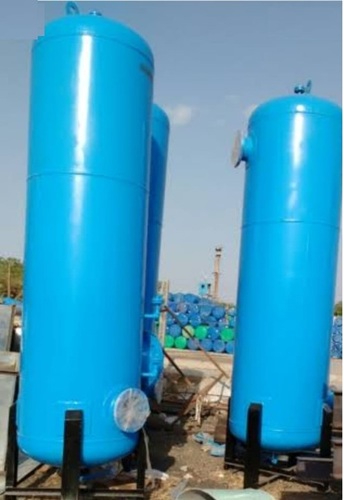

Fabricated Air Receiver

Get a Price/Quote

MOQ : 1 Unit

Fabricated Air Receiver Specification

Tank Material
Mild Steel

Air Inlet
1/2 Inch BSP

Dimension (L*W*H)
600 x 600 x 1800 mm

Height
1800 mm

Capacity
500 Liter

Inner Diameter
600 mm

Working Temperature
0-60C

Working Presssure
10 kg/cm2

Design Pressure
13 kg/cm2

Air Outlet
1/2 Inch BSP

Color
Blue/Grey (Epoxy Painted)

Design Temperature
70C

Volume of Tank
500 Liters

Air Pressure
10 kg/cm2

Drain Valve
1/2 Inch BSP

Safety Valve Provision
Yes

Corrosion Protection
Internal Epoxy Coating

Inspection Port
Available

Usage/Application
Compressed Air Storage

Mounting Type
Vertical, Floor Mounted

Manhole/Hatch
Provided for Maintenance

Testing Pressure
20 kg/cm2

Thickness of Shell
6 mm

Fabricated Air Receiver Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
1 Unit Per Month

Delivery Time
1 Months

Sample Available
No

Main Domestic Market
Madhya Pradesh

Certifications
IBR Registered

About Fabricated Air Receiver

We are a famous manufacturer and supplier of optimum quality Fabricated Air Receivers widely demanded in the market. Our provided receivers of air receiver is applicable in automobile, chemical plant and paper mill. Our team of trained engineers design this air receiver by advance technology followed by international norms and standards. Entire range has tough structure and long functional life. Our Fabricated Air Receivers are built for bearing high pressure and high temperature.

Features:

Easy to install
Easy to use
Low maintenance cost
Long shelf life

Optimal Storage and Safety

This air receiver offers enduring performance, designed to safely store compressed air for various industrial settings. Its safety valve provision and robust shell thickness support reliable operation at high pressures. Epoxy-coated interior delivers advanced corrosion resistance, making it suitable for heavy-duty, long-term use.

Ease of Installation and Maintenance

The vertical, floor-mounted design simplifies placement and installation in confined spaces. With the inclusion of a manhole/hatch and inspection port, routine maintenance is hassle-free, enabling quick internal checks and cleaning without special tools. This helps reduce operational downtime and enhances equipment longevity.

Quality Assurance and Compliance

Each fabricated air receiver undergoes stringent pressure testing up to 20 kg/cm, ensuring compliance with industrial standards for safety and durability. The manufacturer, service provider, and supplierbased in Indiaadhere to best practices, offering customers reliable, thoroughly-inspected products.

FAQs of Fabricated Air Receiver:

Q: How does the internal epoxy coating protect the air receiver from corrosion?

A: The epoxy coating applied to the inner surface creates a durable barrier, preventing moisture and contaminants from reacting with the mild steel shell. This significantly reduces the risk of rust or corrosion, thereby extending the operational lifespan of the tank.

Q: What is the benefit of the floor-mounted, vertical design for installation and space usage?

A: The vertical, floor-mounted configuration allows the air receiver to save valuable floor space and ensures stable positioning. It is suitable for installation in industrial areas with limited room, making the unit both practical and efficient.

Q: When should maintenance be performed on the air receiver, and how is access provided?

A: Routine internal inspections and cleaning are recommended depending on operational frequency, typically every six months. Access for maintenance is facilitated by the provided manhole/hatch and inspection port, making it easier to perform necessary service tasks.

Q: Where can this fabricated air receiver be used effectively?

A: It is ideal for industrial and commercial environments requiring reliable compressed air storage, such as manufacturing plants, automotive workshops, and service facilities, especially where high-pressure operations and durability are crucial.

Q: What safety features are incorporated in the air receiver?

A: The tank is equipped with a safety valve provision, a 1/2 inch BSP drain valve for periodic water removal, and has been pressure-tested up to 20 kg/cm. These features help protect users and equipment from overpressure and maintain safe operation.

Q: How is the air receiver tested for quality and pressure safety before delivery?

A: Each tank undergoes pressure testing up to 20 kg/cm by the manufacturer in India. This ensures the receiver meets stringent safety standards and performs reliably under high-pressure conditions during its service life.
